7/8" -16UN
|

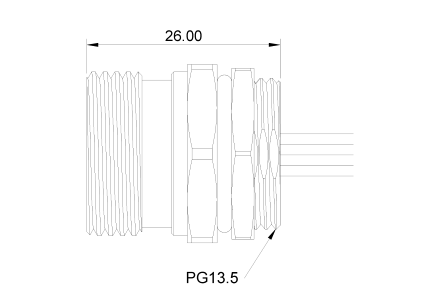

Panel Side |
|
|
Panel Mount Rear Fastened |
|
|
Female |
Male |
|
|
|
|
78-MN-XXP-FFHS-SR-7DLXXX |
78-MN-XXP-MMHS-SR-7DLXXX |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|
|
Cable Side |
|||
|

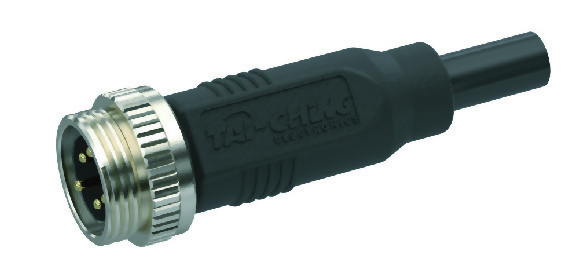

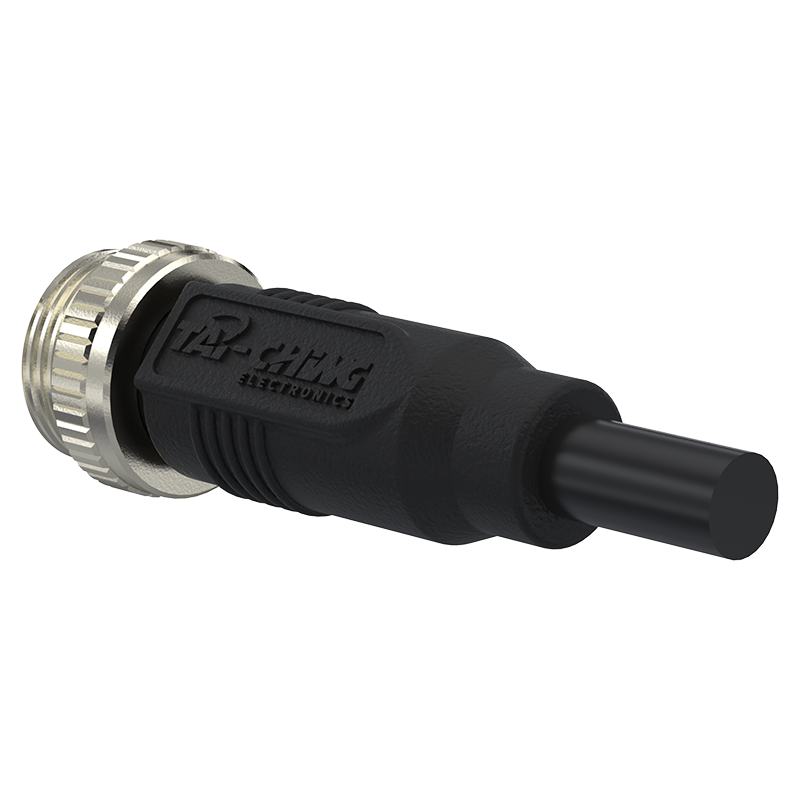

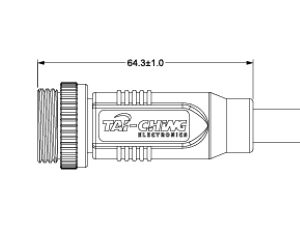

Straight Male |

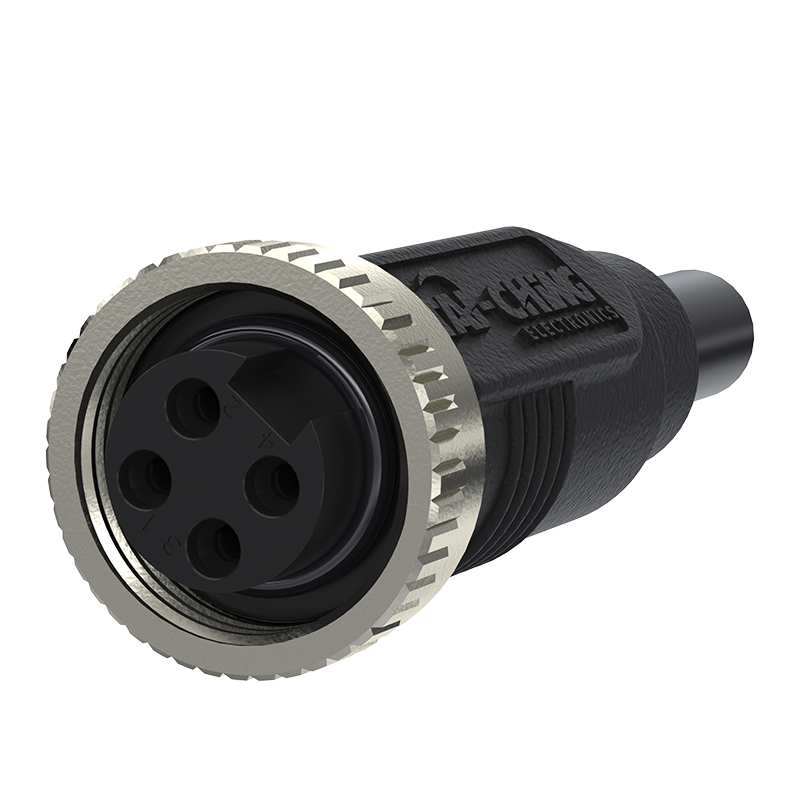

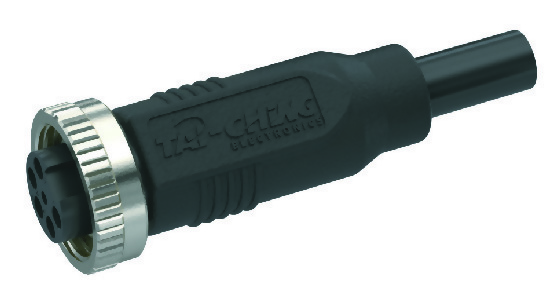

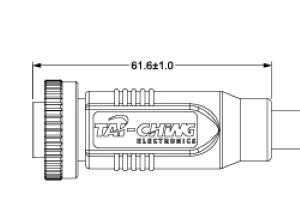

Straight Female |

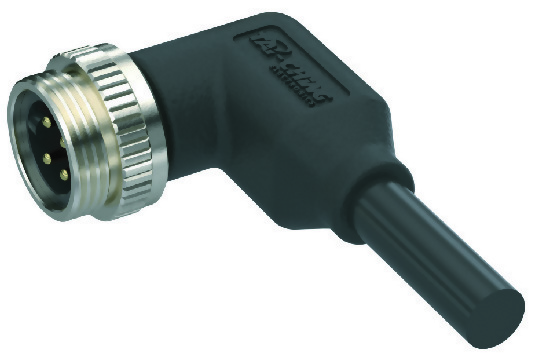

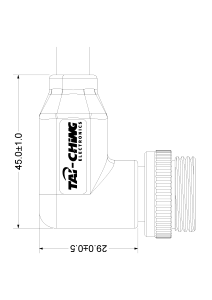

Angled Male |

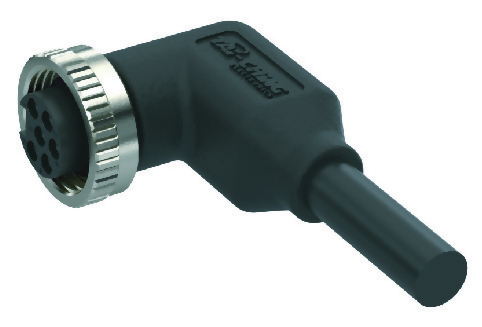

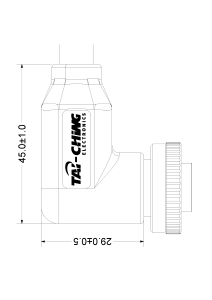

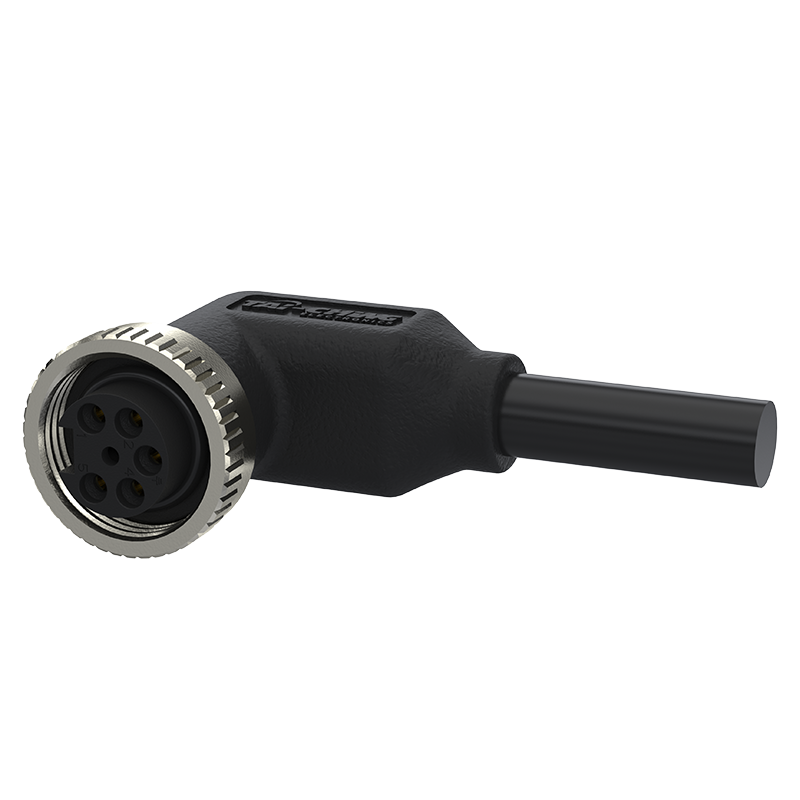

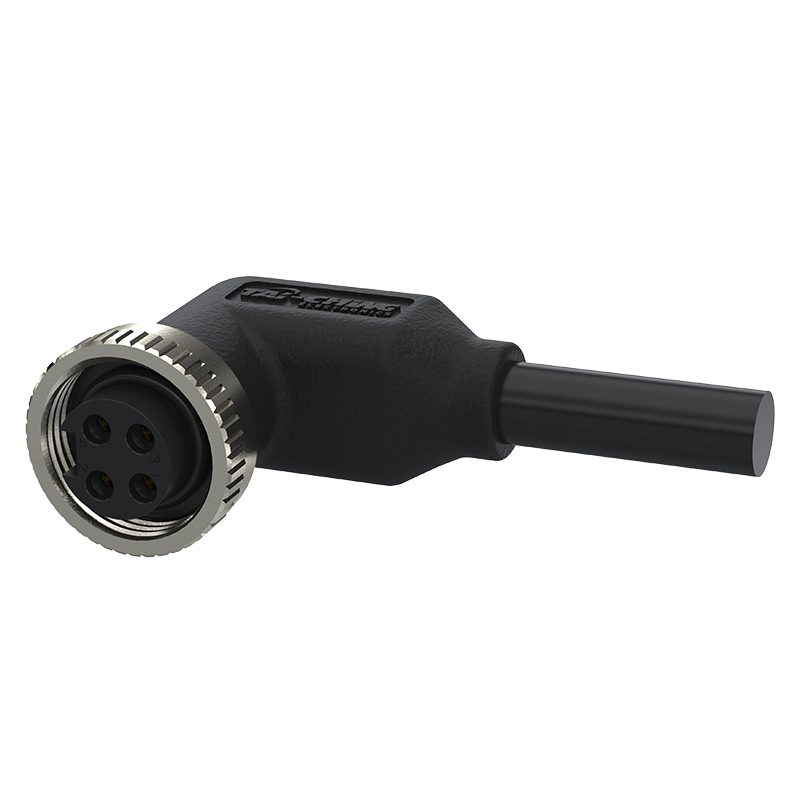

Angled Female |
|
|
|
|
|
|
78-MN-XXC-MMMS-SS-7QXXXX |
78-MN-XXC-FFMS-SS-7QXXXX |
78-MN-XXC-MMMS-SR-7QXXXX |
78-MN-XXC-FFMS-SR-7QXXXX |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|||
|

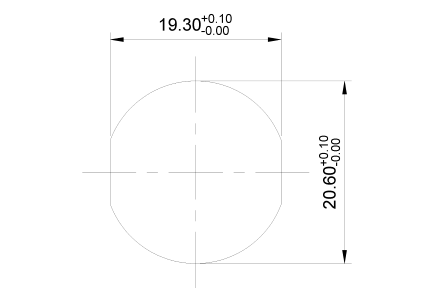

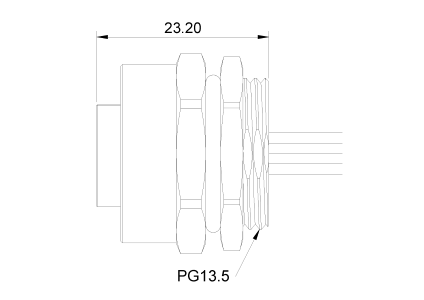

Recommended Panel Cut Out |
|
|
|

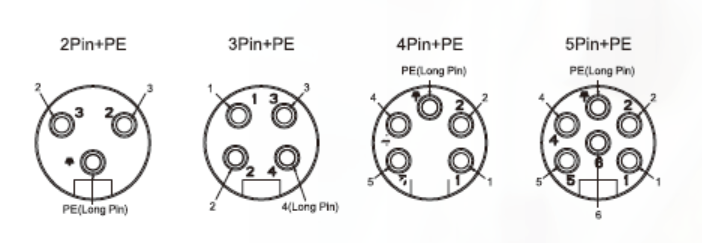

View from termination side |
|
|||
|
Number of contacts |
3 |
4 |
5 |
6 |
|
AWG |
16 |
|||
|
Rated current |
12A |
|||
|
Rated voltage |
600V AC / DC |
|||
|
Rated impulse voltage |
6kV |
|||
|
Temperature Range (working and storage) |
-25°C~85°C |
|||
|
Insulation resistance |
>100MΩ |
|||
|
Contact resistance |
≦10mΩ |
|||
|
Mating cycles |
100 |
|||
|
Locking type |
Screw Locking |
|||
|
Degree of protection acc. to IEC 60529 |
IP67 |
|||
|
Tightening torque |
9~13 kgf.cm |
|||
|
Halogen free |
Optional |
|||
|
Flame retardant |
UL94V-0 |
|||
|
UV-resistant |
Yes |
|||
|
Material (insert) |
Thermoplastic |
|||
|
Material (contacts) |
Copper Alloy |
|||
|
Surface (contacts) |
Gold plated |
|||
|
RoHS |
Compliant |
|||
