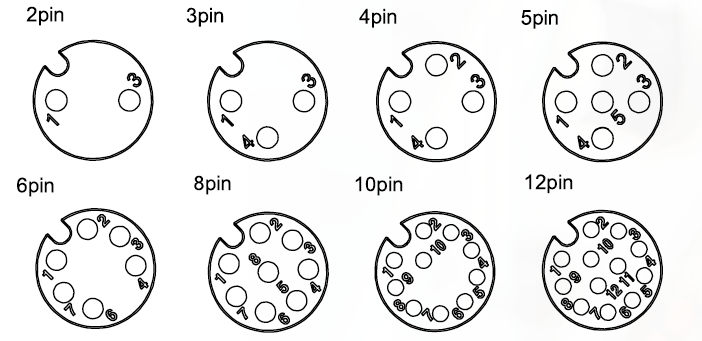

View from termination side

Number of contacts

2~5

6~8

10~12

AWG

22

24

26

Rated current

4A

2A

1.5A

Rated voltage

250V(2~4Pin)

60V(5Pin)

30V

30V

Rated impulse voltage

2.5Kv(2~4Pin)

1.5kV(5Pin)

0.8kV

0.8kV

Temperature Range

(working and storage)

-40°C~105°C

Insulation resistance

>100MΩ

Contact resistance

≦10mΩ

Mating cycles

100

Locking type

Screw Locking

Degree of protection acc. to

IEC 60529

IP67

Tightening torque

5~8 kgf.cm

Halogen free

Optional

Flame retardant

UL94V-0

UV-resistant

Yes

Material (insert)

Thermoplastic

Material (contacts)

Copper Alloy

Surface (contacts)

Gold plated

RoHS

Compliant
