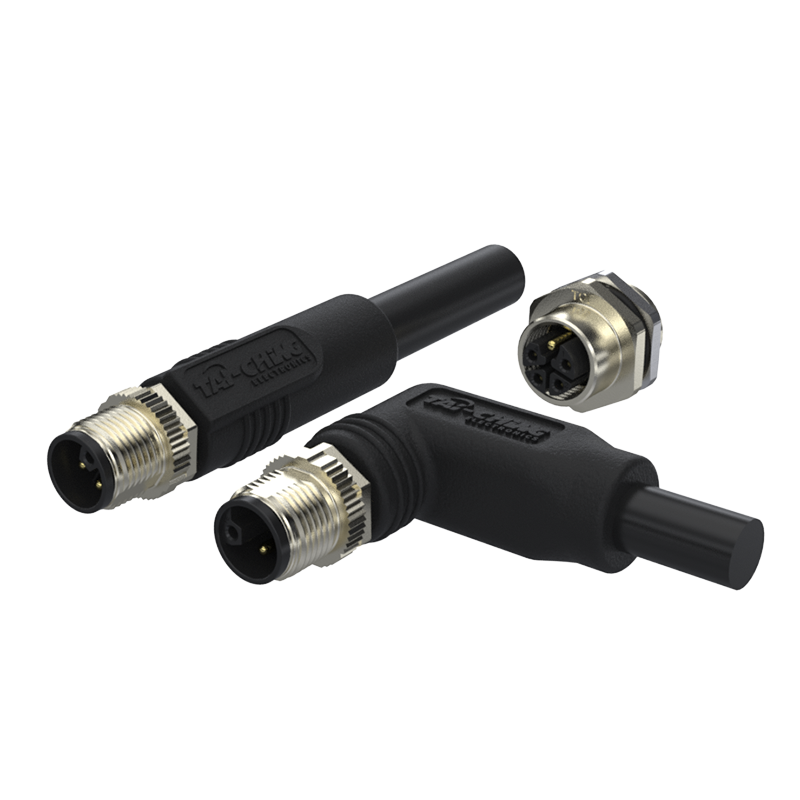

M12 L Code
|
Panel Side |
||
|
Panel Mount Front Fastened |
||
|
Female |
||
|
|
||
|
M12L-MN-03P-FFSS-SR-70000X |
M12L-MN-04P-FFSS-SR-70000X |
M12L-MN-05P-FFSS-SR-70000X |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
||
|
Cable Side |
|
|

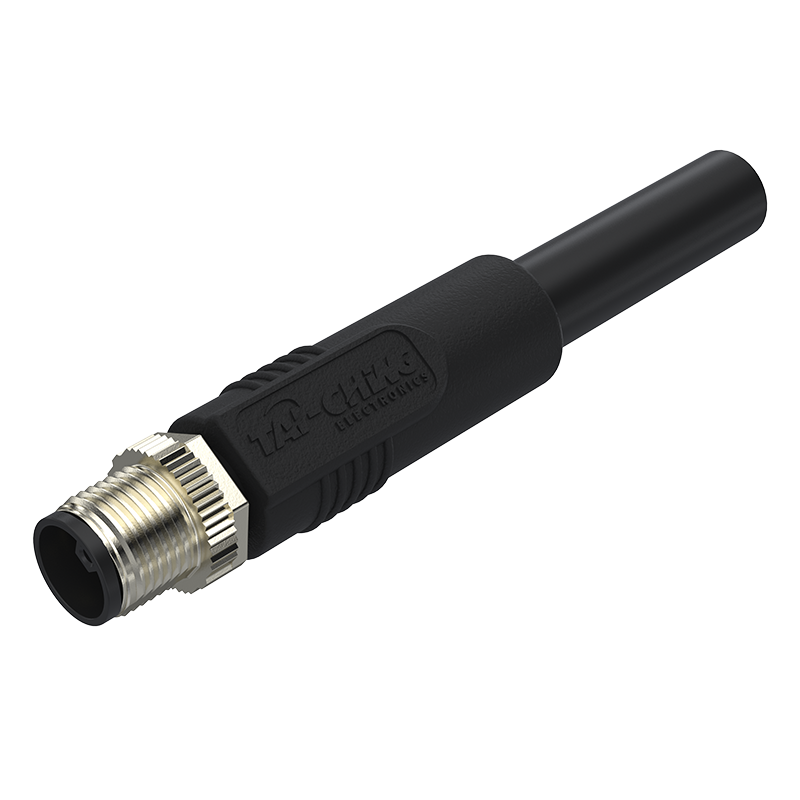

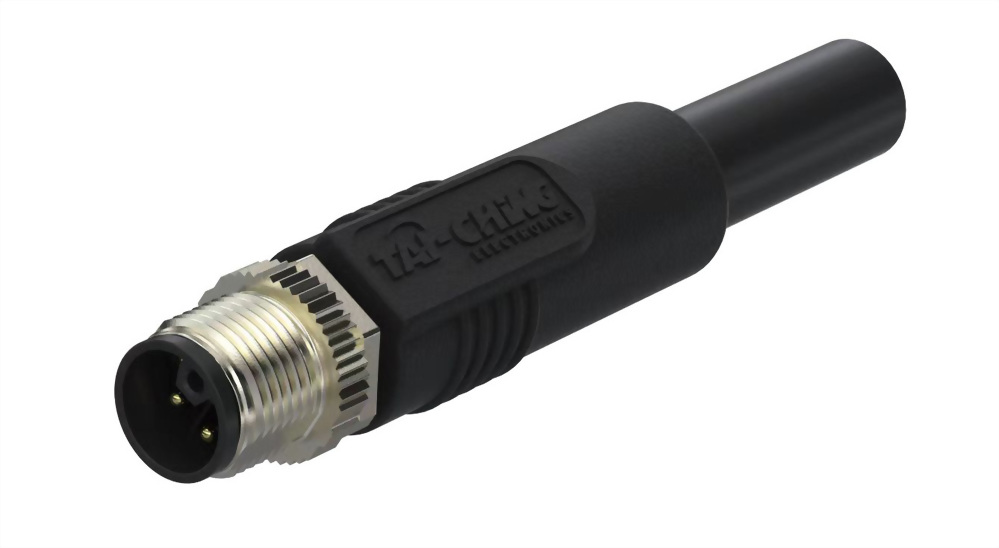

Straight Male |

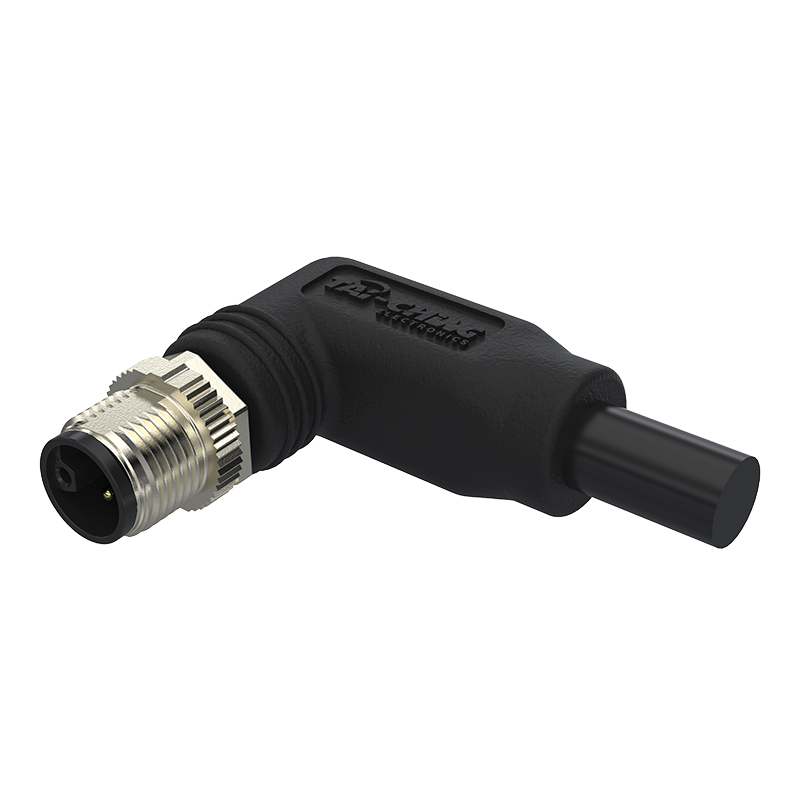

Angled Male |
|
|
|
|
M12L-MN-XXC-MMMS-SS-7MXXX |
M12L-MN-XXC-MMMS-SR-7MXXX |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|
|
Recommended Panel Cut Out |
|
|
M16 |
PG9 |
|
|
|
|
View from termination side |
|
|
Number of contacts |
3-5 |
|
AWG |
14 |
|
Rated current |
16A |
|
Rated voltage |
63V |
|
Rated impulse voltage |
1.5kV |
|
Temperature Range (working and storage) |
-40°C~105°C |
|
Insulation resistance |
>100MΩ |
|
Contact resistance |
≦10mΩ |
|
Mating cycles |
100 |
|
Locking type |
Screw Locking |
|
Degree of protection acc. to IEC 60529 |
IP67 |
|
Tightening torque |
5~8 kgf.cm |
|
Halogen free |
Optional |
|
Flame retardant |
UL94V-0 |
|
UV-resistant |
Yes |
|
Material (insert) |
Thermoplastic |
|
Material (contacts) |
Copper Alloy |
|
Surface (contacts) |
Gold plated |
|
RoHS |
Compliant |
