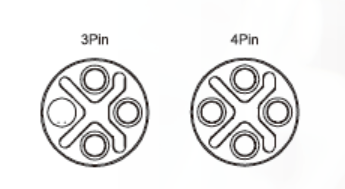

View from termination side

Number of contacts

3-4

AWG

16

Rated current

12A

Rated voltage

630V

Rated impulse voltage

6kV

Temperature Range

(working and storage)

-40°C~105°C

Insulation resistance

>100MΩ

Contact resistance

≦10mΩ

Mating cycles

100

Locking type

Screw Locking

Degree of protection acc. to

IEC 60529

IP67

Tightening torque

5~8 kgf.cm

Halogen free

Optional

Flame retardant

UL94V-0

UV-resistant

Yes

Material (insert)

Thermoplastic

Material (contacts)

Copper Alloy

Surface (contacts)

Gold plated

RoHS

Compliant
